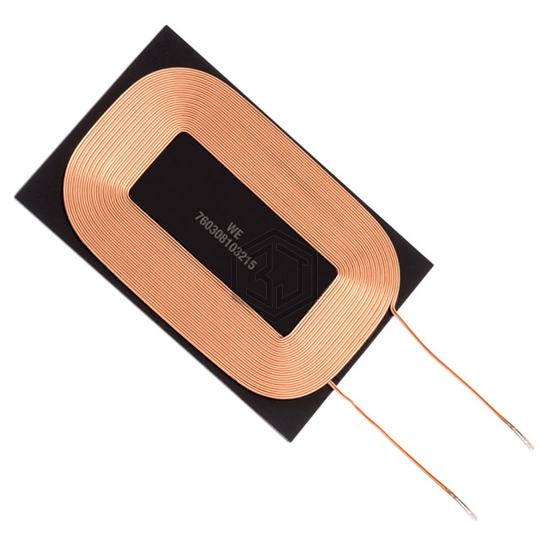

RX 1 COIL 1 LAYER 14.3UH 3A
760308103215 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 14.3UH 3A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 3A, size / dimension 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm), tolerance ±10%.
In Stock: 72
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 14.3µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 190mOhm Max |
| Q @ Freq | 40 @ 125kHz |
| Current Rating (Amps) | 3A |
| Current - Saturation (Isat) | 8A |
| Frequency - Self Resonant | 8.8MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
