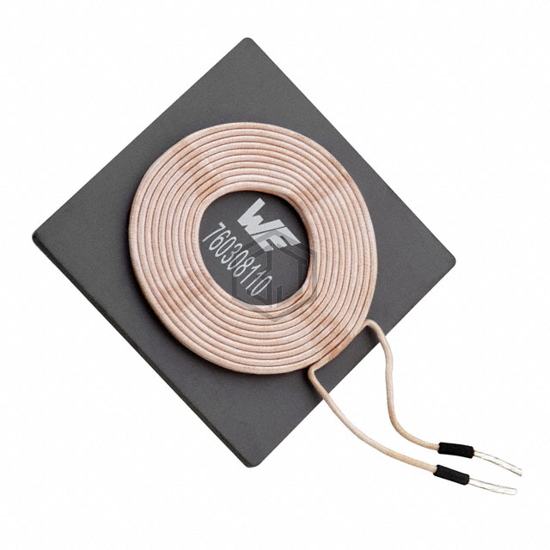

TX 1 COIL 2 LAYER 24UH 6A
760308110 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 2 LAYER 24UH 6A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 6A, size / dimension 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm), tolerance ±10%.
In Stock: 210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Inductance | 24µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 180 @ 125kHz |
| Current Rating (Amps) | 6A |
| Current - Saturation (Isat) | 10A |
| Frequency - Self Resonant | 5MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
Submit your RFQ for 760308110 and get a quote within 24 hours.
