TX 2 COIL 1 LAYER 12UH 11.5UH 8A

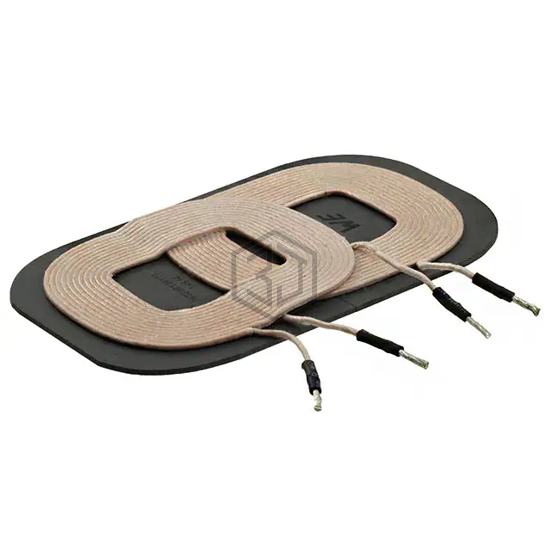

760308104119 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 2 COIL 1 LAYER 12UH 11.5UH 8A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 8A, size / dimension 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm), tolerance ±10%.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 2 Coil, 1 Layer |
| Inductance | 12µH, 11.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 56mOhm |
| Q @ Freq | 130 @ 125kHz |
| Current Rating (Amps) | 8A |
| Current - Saturation (Isat) | 12A |
| Frequency - Self Resonant | 12MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm) |
Submit your RFQ for 760308104119 and get a quote within 24 hours.
