WE-WPCC WIRELESS POWER CHARGING

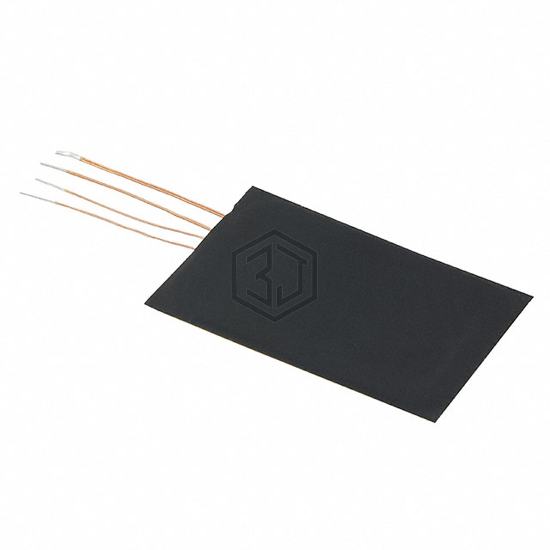

760308103307 is a Wireless Charging Coils manufactured by Würth Elektronik. WE-WPCC WIRELESS POWER CHARGING. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 1.5A, 4A, size / dimension 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm), tolerance ±10%.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 2 Coil, 1 Layer |
| Inductance | 7.8µH, 1.6µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 340mOhm Max, 90mOhm Max |
| Q @ Freq | 19 @ 125kHz, 47 @ 125kHz |
| Current Rating (Amps) | 1.5A, 4A |
| Current - Saturation (Isat) | 3A, 7A |
| Frequency - Self Resonant | 22MHz, 24MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) |
Submit your RFQ for 760308103307 and get a quote within 24 hours.
