RX 1 COIL 1 LAYER 7.3UH 2.5A

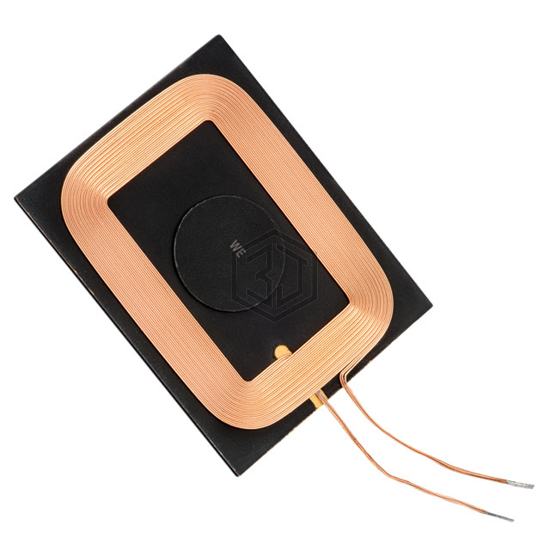

760308103211 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 7.3UH 2.5A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 2.5A, size / dimension 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm), tolerance ±10%.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 7.3µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 28 @ 125kHz |
| Current Rating (Amps) | 2.5A |
| Current - Saturation (Isat) | 5A |
| Frequency - Self Resonant | 12.7MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm) |
Submit your RFQ for 760308103211 and get a quote within 24 hours.
