RX 1 COIL 1 LAYER 7.5UH 1.55A

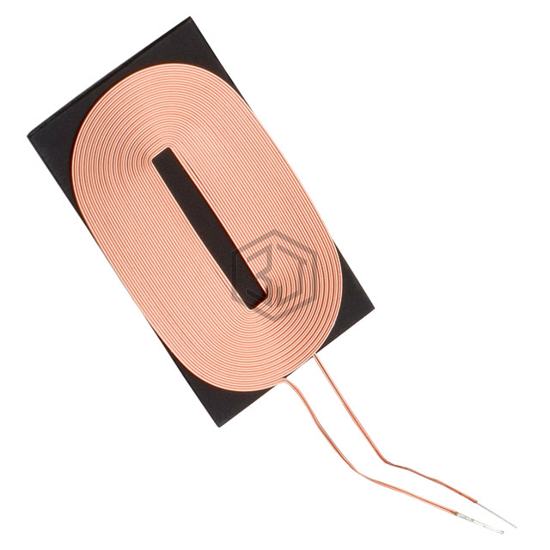

760308103206 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 7.5UH 1.55A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 1.55A, size / dimension 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm), tolerance ±10%.
In Stock: 265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 7.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 340mOhm |
| Q @ Freq | 16 @ 125kHz |
| Current Rating (Amps) | 1.55A |
| Current - Saturation (Isat) | 3A |
| Frequency - Self Resonant | 23MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm) |
