RX 1 COIL 1 LAYER 16.7UH 1A

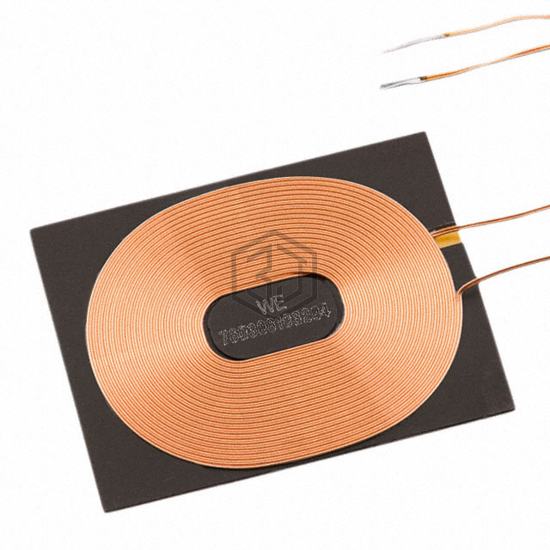

760308103204 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 16.7UH 1A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 1A, size / dimension 1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm), tolerance ±10%.
In Stock: 880
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 16.7µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 430mOhm |
| Q @ Freq | 32 @ 125kHz |
| Current Rating (Amps) | 1A |
| Current - Saturation (Isat) | 4A |
| Frequency - Self Resonant | 11MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm) |
Submit your RFQ for 760308103204 and get a quote within 24 hours.
