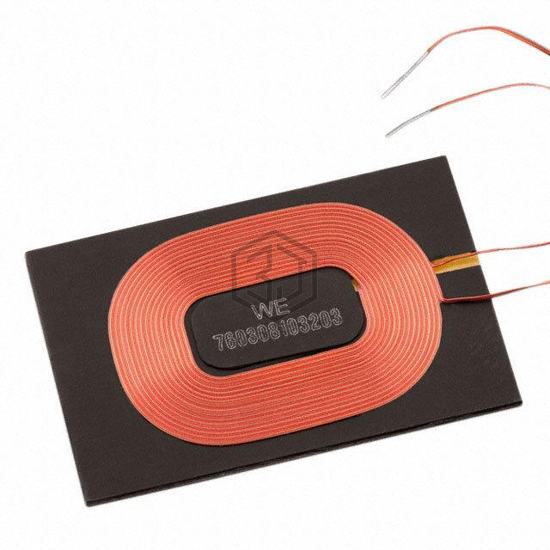

RX 1 COIL 1 LAYER 12UH 1.55A
760308103203 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 12UH 1.55A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 1.55A, size / dimension 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm), tolerance ±10%.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 12µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 550mOhm |
| Q @ Freq | 21 @ 125kHz |
| Current Rating (Amps) | 1.55A |
| Current - Saturation (Isat) | 3A |
| Frequency - Self Resonant | 20MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) |
Submit your RFQ for 760308103203 and get a quote within 24 hours.
