WE-WPCC WIRELESS POWER CHARGING

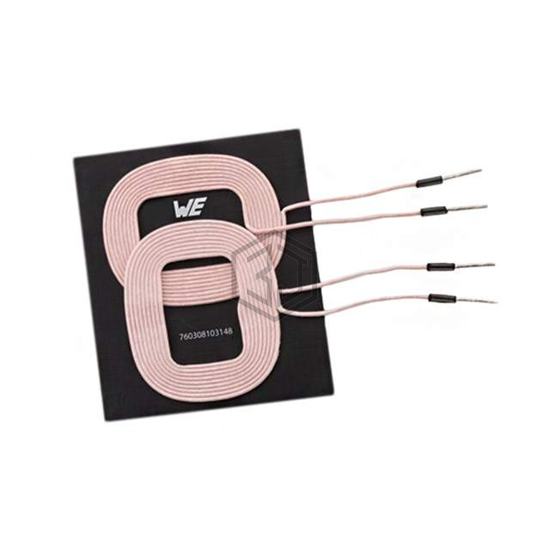

760308103148 is a Wireless Charging Coils manufactured by Würth Elektronik. WE-WPCC WIRELESS POWER CHARGING. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 8.5A, size / dimension 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm), tolerance ±10%.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver, Transmitter |
| Type | 2 Coil, 1 Layer |
| Inductance | 6.9µH, 6.4µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 52mOhm Max |
| Q @ Freq | 120 @ 125kHz, 115 @ 125kHz |
| Current Rating (Amps) | 8.5A |
| Current - Saturation (Isat) | 20A |
| Frequency - Self Resonant | 15MHz, 19MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm) |
Submit your RFQ for 760308103148 and get a quote within 24 hours.
