WE-WPCC WIRELESS POWER CHARGING

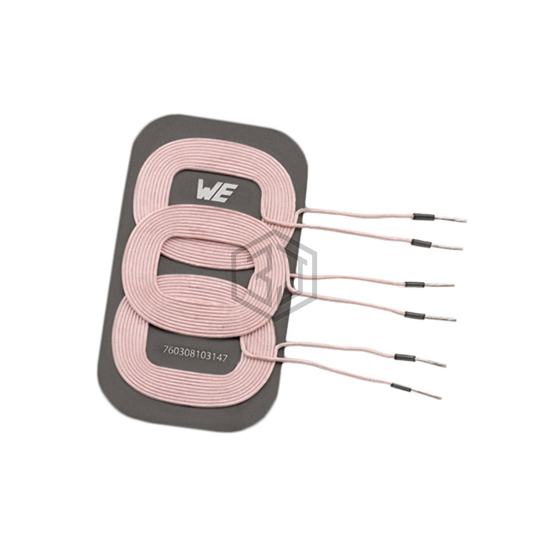

760308103147 is a Wireless Charging Coils manufactured by Würth Elektronik. WE-WPCC WIRELESS POWER CHARGING. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 9A, 10A, 9A, size / dimension 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm), tolerance ±10%.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 3 Coil, 1 Layer |
| Inductance | 8.5µH, 7.5µH, 8.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 56mOhm Max |
| Q @ Freq | 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz |
| Current Rating (Amps) | 9A, 10A, 9A |
| Current - Saturation (Isat) | 18A |
| Frequency - Self Resonant | 11MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm) |
Submit your RFQ for 760308103147 and get a quote within 24 hours.
