WE-WPCC WIRELESS POWER CHARGING

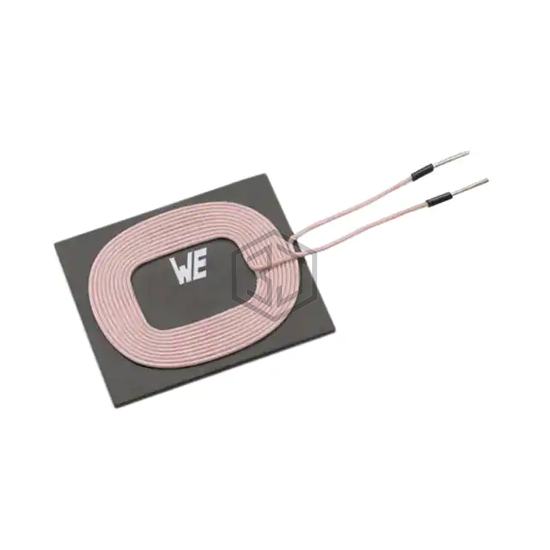

760308103146 is a Wireless Charging Coils manufactured by Würth Elektronik. WE-WPCC WIRELESS POWER CHARGING. Key specifications: operating temperature -20°C ~ 60°C, current rating (amps) 8A, size / dimension 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm), tolerance ±10%.
In Stock: 5,136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 8.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 56mOhm Max |
| Q @ Freq | 140 @ 125kHz |
| Current Rating (Amps) | 8A |
| Current - Saturation (Isat) | 16A |
| Frequency - Self Resonant | 11MHz |
| Operating Temperature | -20°C ~ 60°C |
| Size / Dimension | 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm) |
Submit your RFQ for 760308103146 and get a quote within 24 hours.
