TX 1 COIL 1 LAYER 10UH 7A

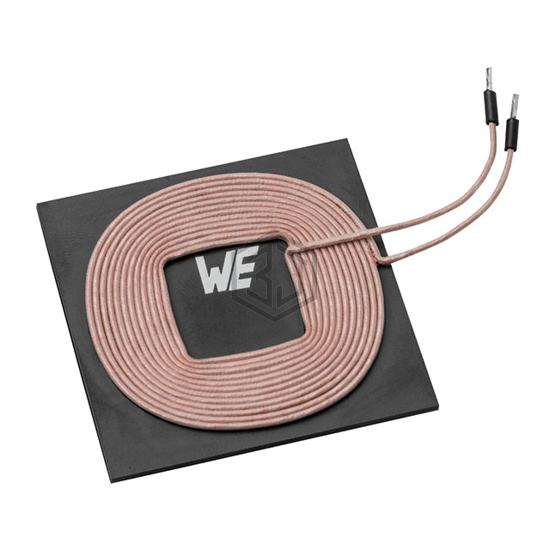

760308103102 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 1 LAYER 10UH 7A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 7A, size / dimension 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm), tolerance ±10%.
In Stock: 295
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 10µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 55mOhm Max |
| Q @ Freq | 130 @ 125kHz |
| Current Rating (Amps) | 7A |
| Current - Saturation (Isat) | 10A |
| Frequency - Self Resonant | 11MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm) |
Submit your RFQ for 760308103102 and get a quote within 24 hours.
