WE-WPCC WIRELESS POWER CHARGING

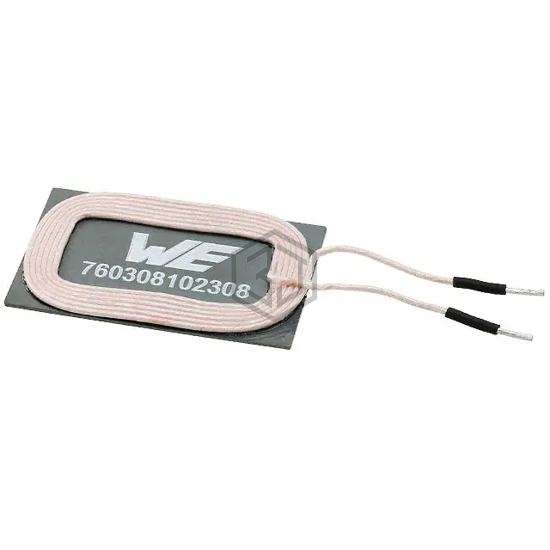

760308102308 is a Wireless Charging Coils manufactured by Würth Elektronik. WE-WPCC WIRELESS POWER CHARGING. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 8.5A, size / dimension 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm), tolerance ±10%.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 3µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 35mOhm Max |
| Q @ Freq | 60 @ 125kHz |
| Current Rating (Amps) | 8.5A |
| Current - Saturation (Isat) | 15A |
| Frequency - Self Resonant | 27MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm) |
Submit your RFQ for 760308102308 and get a quote within 24 hours.
