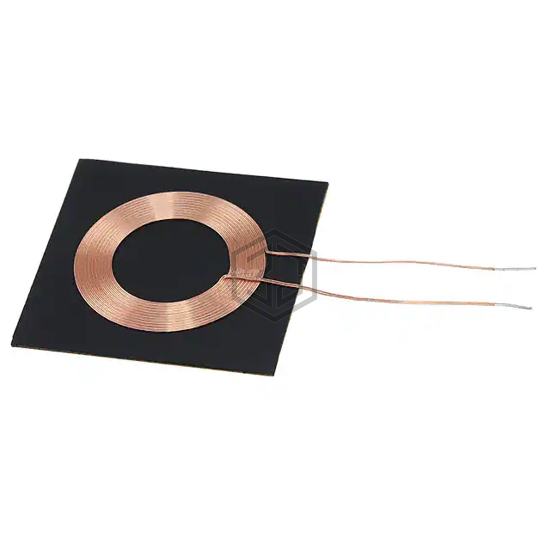

RX 1 COIL 1 LAYER 5.4UH 2A
760308102212 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 5.4UH 2A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 2A, size / dimension 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm), tolerance ±10%.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 5.4µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 240mOhm Max |
| Q @ Freq | 18 @ 125kHz |
| Current Rating (Amps) | 2A |
| Current - Saturation (Isat) | 4A |
| Frequency - Self Resonant | 25MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) |
Submit your RFQ for 760308102212 and get a quote within 24 hours.
