TX 1 COIL 1 LYR BIFIL 5.8UH 18A

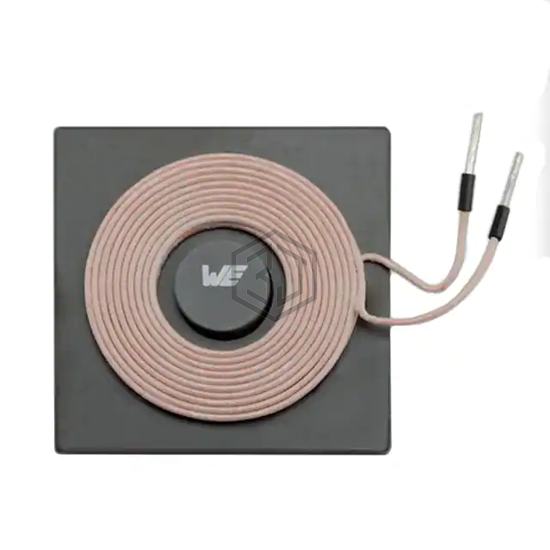

760308102142 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 1 LYR BIFIL 5.8UH 18A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 18A, size / dimension 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm), tolerance ±10%.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer, Bifilar |
| Inductance | 5.8µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 12mOhm Max |
| Q @ Freq | 100 @ 125kHz |
| Current Rating (Amps) | 18A |
| Current - Saturation (Isat) | 30A |
| Frequency - Self Resonant | 12MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
Submit your RFQ for 760308102142 and get a quote within 24 hours.
