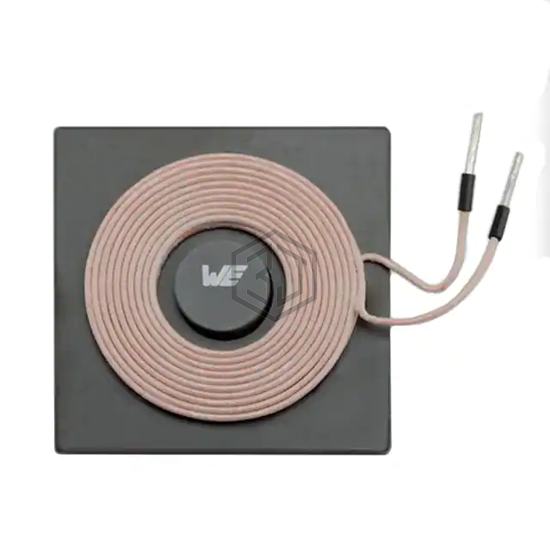

TX 1 COIL 1 LAYER 6.3UH 6A
760308101304 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 1 LAYER 6.3UH 6A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 6A, size / dimension 1.85" Dia x 0.12" H (47.0mm x 3.0mm), tolerance ±10%.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 6.3µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 48mOhm Max |
| Q @ Freq | 115 @ 125kHz |
| Current Rating (Amps) | 6A |
| Current - Saturation (Isat) | 10A |
| Frequency - Self Resonant | 16MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.85" Dia x 0.12" H (47.0mm x 3.0mm) |
Submit your RFQ for 760308101304 and get a quote within 24 hours.
