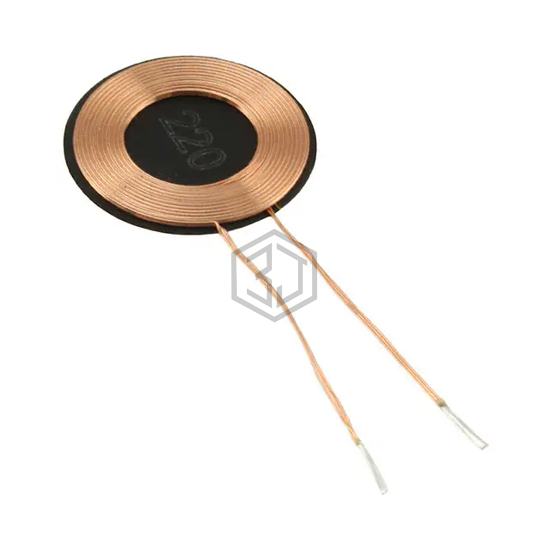

RX 1 COIL 3 LAYER BIFILAR 12.6UH
760308101220 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 3 LAYER BIFILAR 12.6UH. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 1.1A, size / dimension 0.67" Dia x 0.03" H (17.0mm x 0.8mm), tolerance ±10%.
In Stock: 8,826
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 3 Layer, Bifilar |
| Inductance | 12.6µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 340mOhm Max |
| Q @ Freq | 20 @ 125kHz |
| Current Rating (Amps) | 1.1A |
| Current - Saturation (Isat) | 2.5A |
| Frequency - Self Resonant | 19MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 0.67" Dia x 0.03" H (17.0mm x 0.8mm) |
Submit your RFQ for 760308101220 and get a quote within 24 hours.
