RX 1 COIL 6 LAYER 24.2UH 400MA

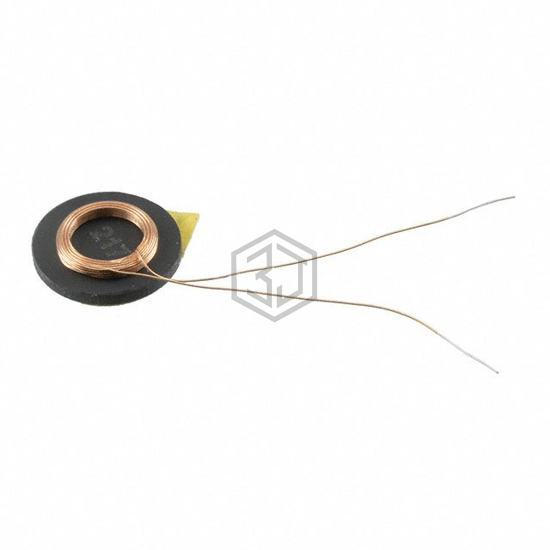

760308101217 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 6 LAYER 24.2UH 400MA. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 400mA, size / dimension 0.41" Dia x 0.07" H (10.3mm x 1.9mm), tolerance ±10%.
In Stock: 335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 6 Layer |
| Inductance | 24.2µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 1.4Ohm Max |
| Q @ Freq | 13 @ 125kHz |
| Current Rating (Amps) | 400mA |
| Current - Saturation (Isat) | 1A |
| Frequency - Self Resonant | 14.5MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 0.41" Dia x 0.07" H (10.3mm x 1.9mm) |
Submit your RFQ for 760308101217 and get a quote within 24 hours.
