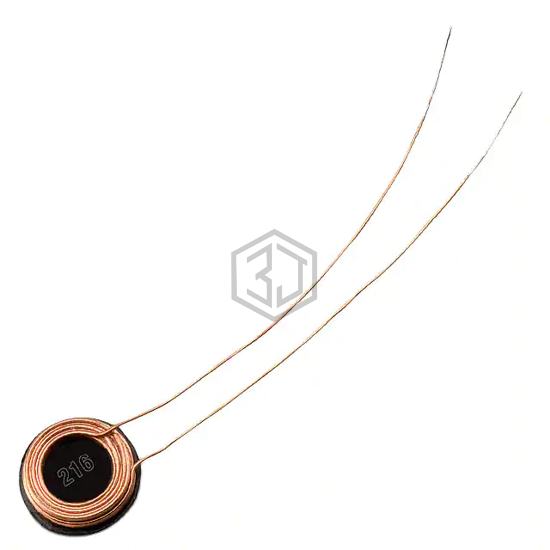

RX 1 COIL 6 LAYER 7.2UH 500MA
760308101216 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 6 LAYER 7.2UH 500MA. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 500mA, size / dimension 0.24" Dia x 0.08" H (6.0mm x 2.0mm), tolerance ±10%.
In Stock: 4,677
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 6 Layer |
| Inductance | 7.2µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 440mOhm Max |
| Q @ Freq | 10 @ 125kHz |
| Current Rating (Amps) | 500mA |
| Current - Saturation (Isat) | 1A |
| Frequency - Self Resonant | 32MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) |
Submit your RFQ for 760308101216 and get a quote within 24 hours.
