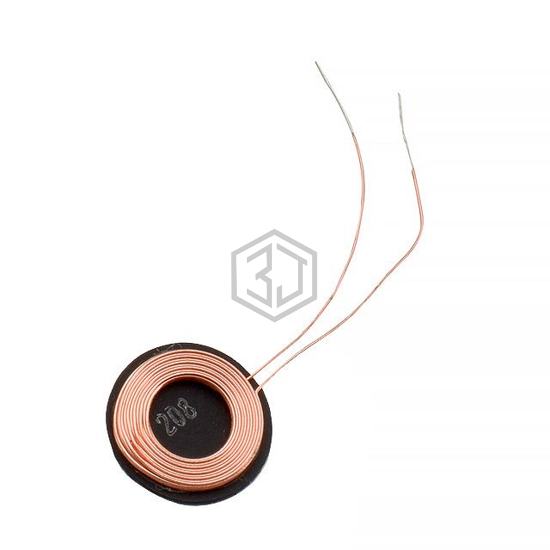

RX 1 COIL 3 LAYER 13UH 0.8A
760308101208 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 3 LAYER 13UH 0.8A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 0.8A, size / dimension 0.39" Dia x 0.07" H (10.0mm x 1.7mm), tolerance ±10%.
In Stock: 575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 3 Layer |
| Inductance | 13µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 400mOhm |
| Q @ Freq | 17 @ 125kHz |
| Current Rating (Amps) | 0.8A |
| Current - Saturation (Isat) | 2A |
| Frequency - Self Resonant | 26MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 0.39" Dia x 0.07" H (10.0mm x 1.7mm) |
Submit your RFQ for 760308101208 and get a quote within 24 hours.
