TX 1 COIL 2 LAYER 6.3UH 2.5A

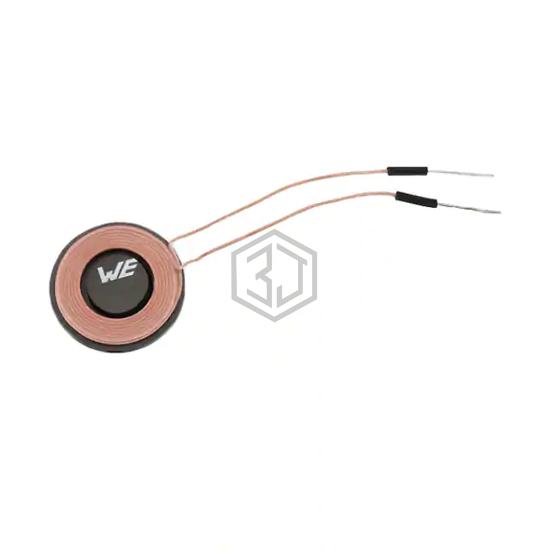

760308101104 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 2 LAYER 6.3UH 2.5A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 2.5A, size / dimension 0.81" Dia x 0.10" H (20.5mm x 2.6mm), tolerance ±10%.
In Stock: 7,034
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Inductance | 6.8µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 125mOhm Max |
| Q @ Freq | 42 @ 125kHz |
| Current Rating (Amps) | 2.5A |
| Current - Saturation (Isat) | 6A |
| Frequency - Self Resonant | 20MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
Submit your RFQ for 760308101104 and get a quote within 24 hours.
