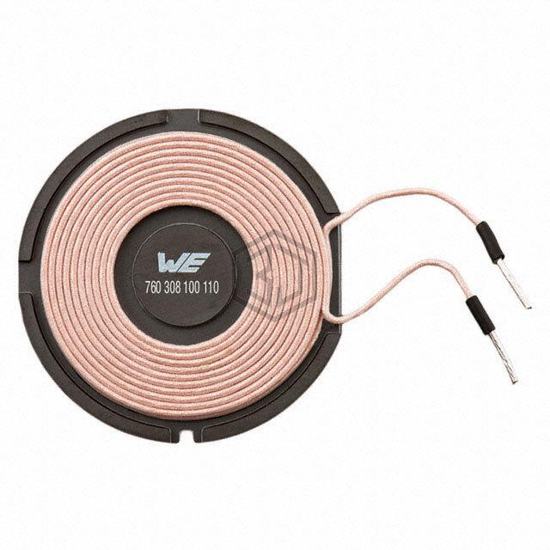

TX 1 COIL 1 LAYER 6.5UH 3A
760308101103 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 1 LAYER 6.5UH 3A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 3A, size / dimension 1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm), tolerance ±10%.
In Stock: 1,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 6.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 35 @ 125kHz |
| Current Rating (Amps) | 3A |
| Current - Saturation (Isat) | 8A |
| Frequency - Self Resonant | 20MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm) |
