TX 1 COIL 2 LAYER 6UH 12A

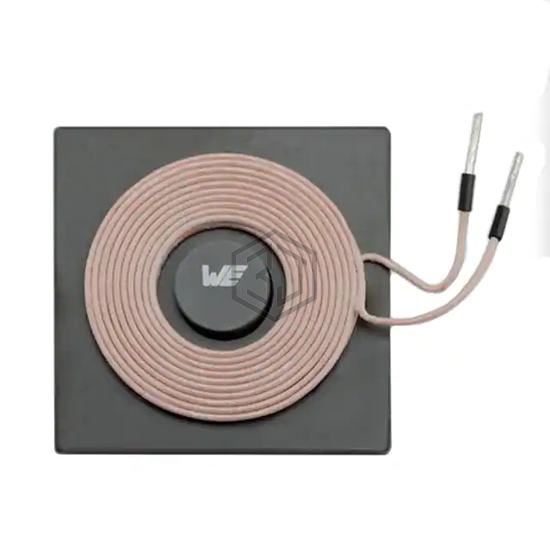

760308100143 is a Wireless Charging Coils manufactured by Würth Elektronik. TX 1 COIL 2 LAYER 6UH 12A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 12A, size / dimension 1.97" Dia x 0.26" H (50.0mm x 6.7mm), tolerance ±10%.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Inductance | 6µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 18mOhm Max |
| Q @ Freq | 180 @ 125kHz |
| Current Rating (Amps) | 12A |
| Current - Saturation (Isat) | 24A |
| Frequency - Self Resonant | 16MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.97" Dia x 0.26" H (50.0mm x 6.7mm) |
Submit your RFQ for 760308100143 and get a quote within 24 hours.
