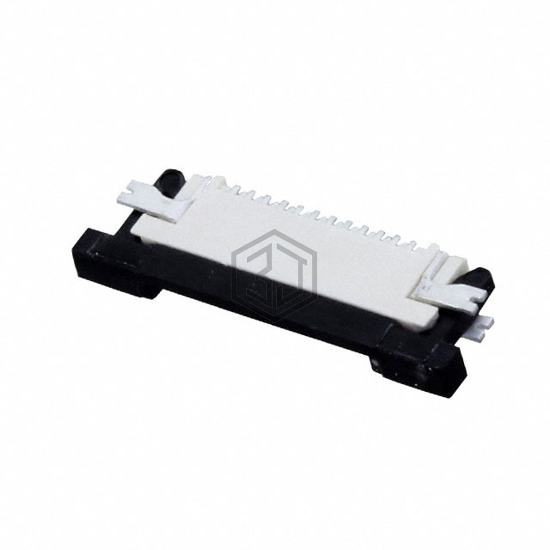

CONN FFC BTM 12POS 0.5MM SMD R/A
687112183722 is a FFC, FPC (Flat Flexible) Connectors manufactured by Würth Elektronik. CONN FFC BTM 12POS 0.5MM SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 2,456
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 12 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.047" (1.20mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | - |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
