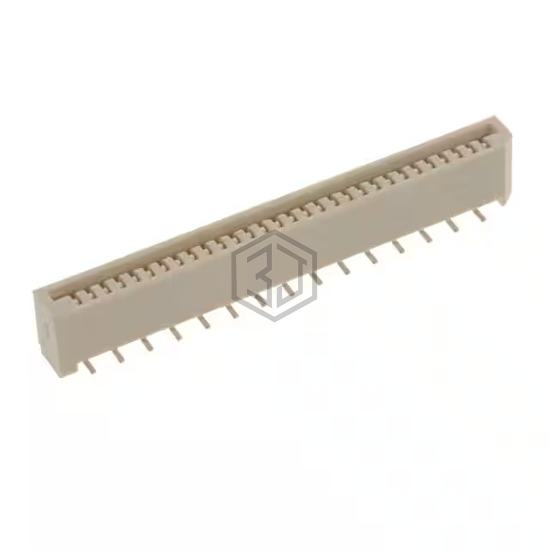

WR-FPC_1.00 MM SMT VERTICAL LIF
686130188822 is a FFC, FPC (Flat Flexible) Connectors manufactured by Würth Elektronik. WR-FPC_1.00 MM SMT VERTICAL LIF. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 125V, housing material Liquid Crystal Polymer (LCP).
In Stock: 1,848
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 30 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.201" (5.10mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Low Insertion Force (LIF), Pick and Place Cap |
| Voltage Rating | 125V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 686130188822 and get a quote within 24 hours.
