CONN FPC BOTTOM 30POS 1.00MM R/A

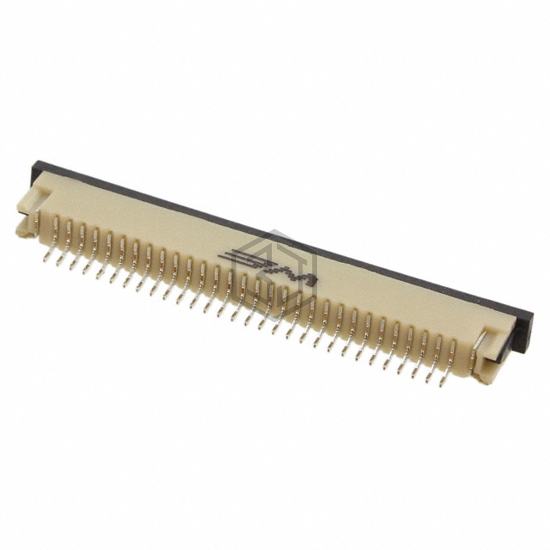

68613014422 is a FFC, FPC (Flat Flexible) Connectors manufactured by Würth Elektronik. CONN FPC BOTTOM 30POS 1.00MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 125V, housing material Polyphenylene Sulfide (PPS).
In Stock: 999
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 30 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 68613014422 and get a quote within 24 hours.
