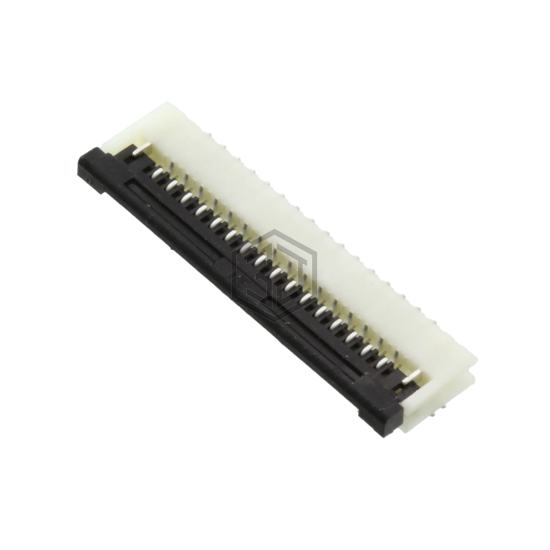

CONN 1MM HORZ BOTTOM SMD 16POS
686116148922 is a FFC, FPC (Flat Flexible) Connectors manufactured by Würth Elektronik. CONN 1MM HORZ BOTTOM SMD 16POS. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 100V, housing material Polyamide (PA6T), Nylon 6T.
In Stock: 1,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 16 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.087" (2.20mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 100V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 686116148922 and get a quote within 24 hours.
