WR-FPC_1.00 MM SMT HORIZONTAL LI

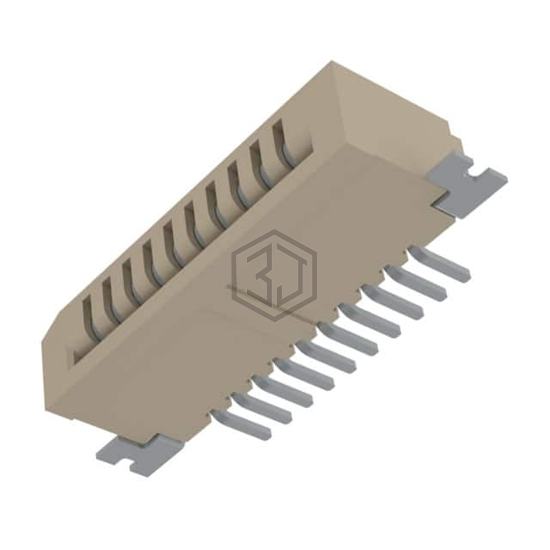

686110188622 is a FFC, FPC (Flat Flexible) Connectors manufactured by Würth Elektronik. WR-FPC_1.00 MM SMT HORIZONTAL LI. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 125V, housing material Liquid Crystal Polymer (LCP).
In Stock: 2,498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 10 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.122" (3.10mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Low Insertion Force (LIF), Solder Retention |
| Voltage Rating | 125V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 686110188622 and get a quote within 24 hours.
