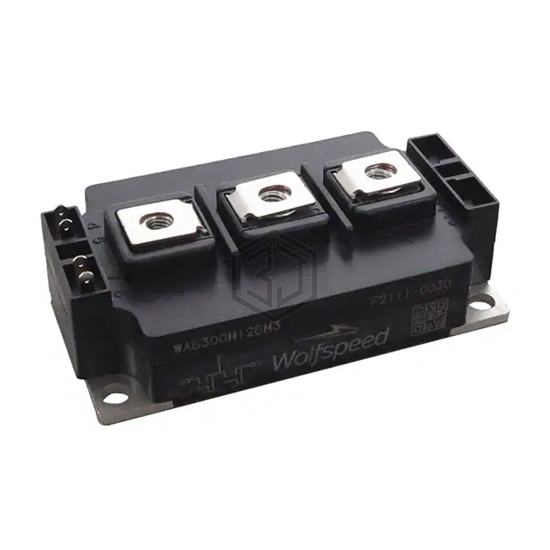

1200 V, 300 A HALF-BRIDGE MODULE
WAB300M12BM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 1200 V, 300 A HALF-BRIDGE MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 382A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 300A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 92mA |
| Gate Charge (Qg) (Max) @ Vgs | 908nC @ 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 24500pF @ 1000V |
| Power - Max | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for WAB300M12BM3 and get a quote within 24 hours.
