Taiwan Semiconductor Corporation
MOSFET N/P-CH 30V 15A/13A 8SOP

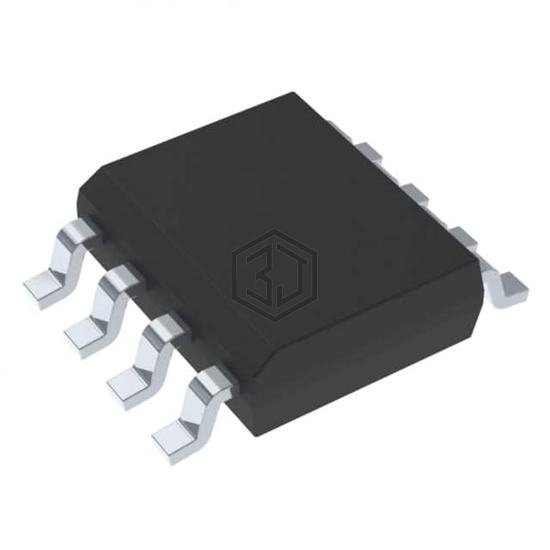

TSM8568CS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET N/P-CH 30V 15A/13A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 6W.
In Stock: 30,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc), 13A (Tc) |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 8A, 10V, 24mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V, 11nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 646pF @ 15V, 1089pF @ 15V |
| Power - Max | 6W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
Submit your RFQ for TSM8568CS RLG and get a quote within 24 hours.
