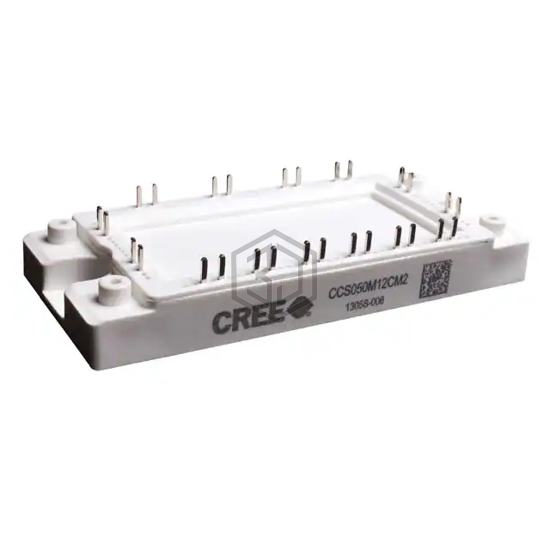

MOSFET 6N-CH 1200V 87A MODULE
CCS050M12CM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 6N-CH 1200V 87A MODULE. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case Module, power - max 337W.
In Stock: 5,746
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 87A (Tc) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 50A, 20V |
| Vgs(th) (Max) @ Id | 2.3V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 180nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2.810nF @ 800V |
| Power - Max | 337W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for CCS050M12CM2 and get a quote within 24 hours.
