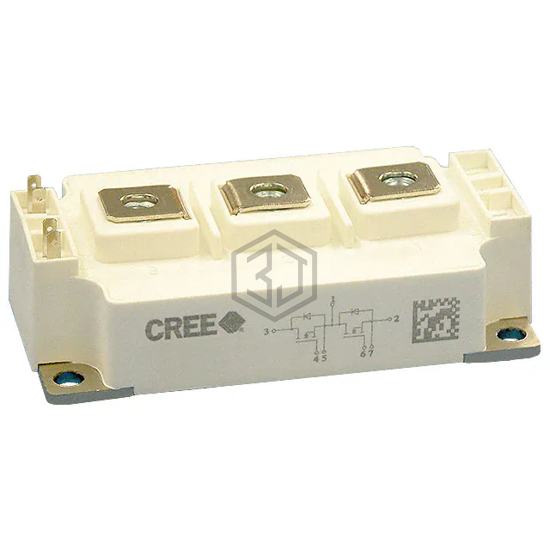

MOSFET 2N-CH 1200V 193A MODULE
CAS120M12BM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2N-CH 1200V 193A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 925W.
In Stock: 516
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 193A (Tc) |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 120A, 20V |
| Vgs(th) (Max) @ Id | 2.6V @ 6mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 378nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6470pF @ 800V |
| Power - Max | 925W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for CAS120M12BM2 and get a quote within 24 hours.
