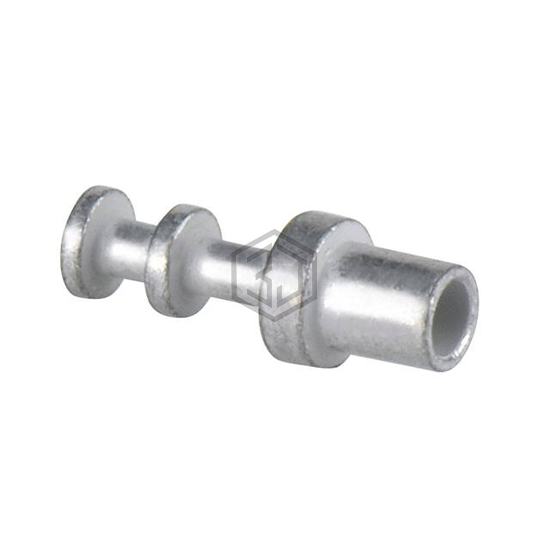

NON-INSULATED DOUBLE TURRET TERM
15-216-2-05 is a Terminals - Turret Connectors manufactured by Concord Electronics. NON-INSULATED DOUBLE TURRET TERM. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 166
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Terminal Type | Single End |
| Number of Turrets | Double |
| Length - Above Board | 0.237" (6.02mm) |
| Length - Below Flange | 0.105" (2.67mm) |
| Length - Overall | 0.342" (8.69mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.093" (2.36mm) |
| Staking Side OD | 0.090" (2.29mm) |
| Staking Side ID | 0.064" (1.63mm) |
| Mounting Hole Diameter | 0.094" (2.39mm) |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Electro-Solder |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Insulation | Non-Insulated |
Submit your RFQ for 15-216-2-05 and get a quote within 24 hours.
