Vishay Beyschlag/Draloric/BC Components

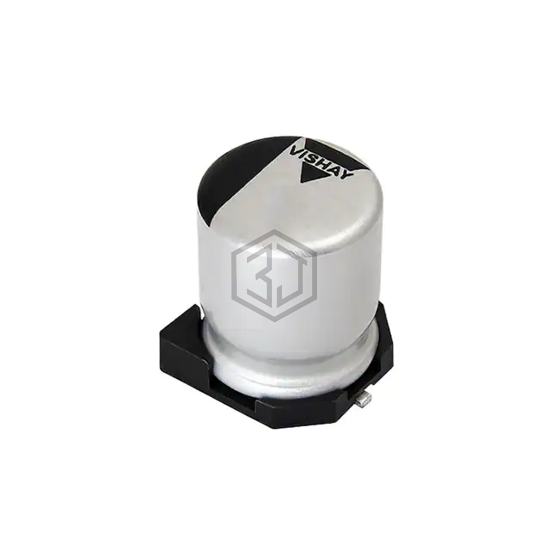

CAP ALUM POLY 180UF 20% 20V SMD
MAL218697554E3 is a Aluminum - Polymer Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM POLY 180UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 8,932
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RDS1C181MCNAHFGS | Nichicon | CAP ALUM POLY 180UF 20% 16V SMD | 89% | View |
| PCX1D181MCS1GS | Nichicon | CAP ALUM POLY 180UF 20% 20V SMD | 84% | View |
| PCX1E181MCL1GS | Nichicon | CAP ALUM POLY 180UF 20% 25V SMD | 78% | View |
| PCR1H181MCL1GS | Nichicon | CAP ALUM POLY 180UF 20% 50V SMD | 69% | View |
| 25SVF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 25V SMD | 60% | View |
| 16SVF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 16V SMD | 55% | View |
Submit your RFQ for MAL218697554E3 and get a quote within 24 hours.
