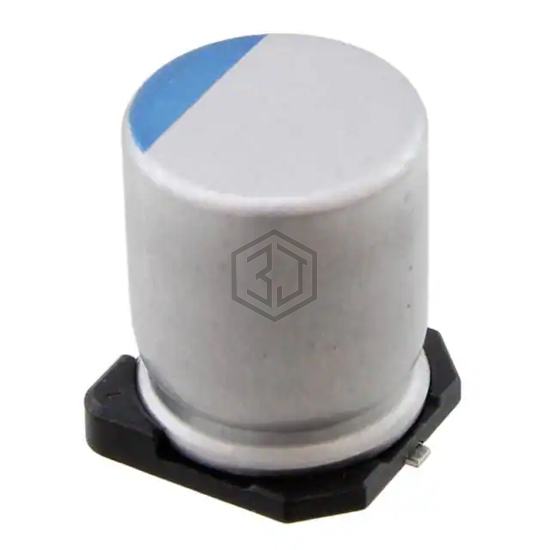

CAP ALUM POLY 180UF 20% 25V SMD
PCX1E181MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 180UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1D181MCS1GS | Nichicon | CAP ALUM POLY 180UF 20% 20V SMD | 87% | View |
| A770KE187M1ELAS029 | KEMET | CAP ALUM POLY 180UF 20% 25V SMD | 84% | View |
| 25SVF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 25V SMD | 81% | View |
| MAL218697554E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 20V SMD | 78% | View |
| 35SVPK180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 35V SMD | 63% | View |
| 16SVF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 16V SMD | 52% | View |
Submit your RFQ for PCX1E181MCL1GS and get a quote within 24 hours.
