Vishay Beyschlag/Draloric/BC Components

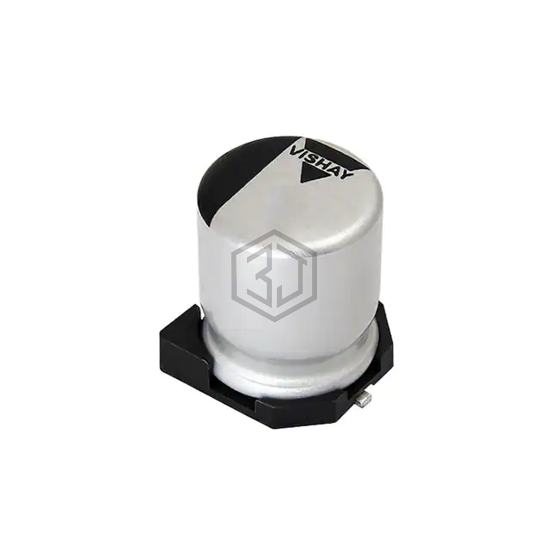

CAP ALUM POLY 27UF 20% 35V SMD
MAL218697002E3 is a Aluminum - Polymer Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM POLY 27UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1V270MCS1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 98% | View |
| PCX1V270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 98% | View |
| PCR1V270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 72% | View |
| PCR1K270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 80V SMD | 71% | View |
| MAL218697105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 27UF 20% 50V SMD | 63% | View |
| 25SVF27M | Panasonic Electronic Components | CAP ALUM POLY 27UF 20% 25V SMD | 61% | View |
Submit your RFQ for MAL218697002E3 and get a quote within 24 hours.
