CAP ALUM POLY 27UF 20% 35V SMD

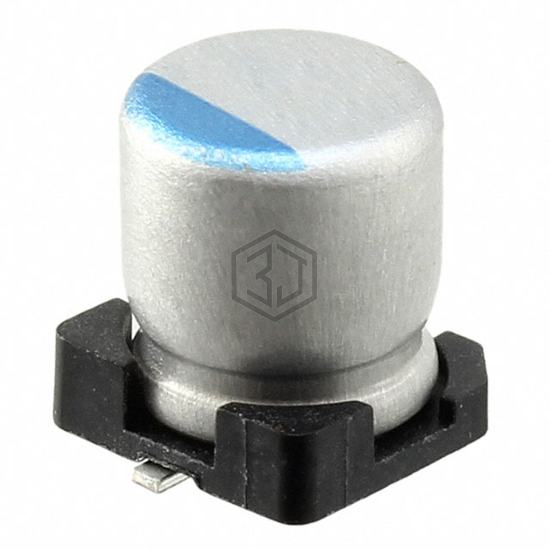

PCR1V270MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 27UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,246
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1V270MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1V270MCS1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 75% | View |
| PCX1V270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 75% | View |
| MAL218697002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 27UF 20% 35V SMD | 72% | View |
| 80SXV27MX | Panasonic Electronic Components | CAP ALUM POLY 27UF 20% 80V SMD | 68% | View |
| RKS1V270MCNAFEGS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 64% | View |
| A768KE276M1JLAE054 | KEMET | CAP ALUM POLY 27UF 20% 63V SMD | 54% | View |
Submit your RFQ for PCR1V270MCL1GS and get a quote within 24 hours.
