Vishay Beyschlag/Draloric/BC Components
2200UF 35V 16X25MM 105C 10000H

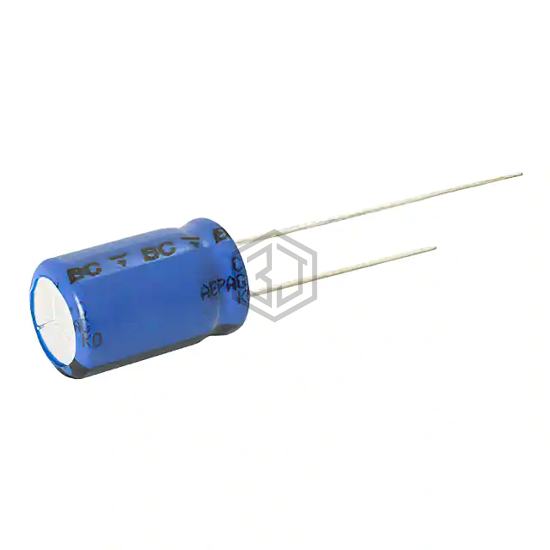

MAL217250222E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. 2200UF 35V 16X25MM 105C 10000H. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.8956 A @ 100 Hz |
| Ripple Current @ High Frequency | 3.81 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPA350ELL222MM25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 88% | View |
| 25ZLJ2200MGC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 81% | View |
| SLP222M100E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 72% | View |
| UPA1E222MHD6 | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 68% | View |
| EKMH800VSN222MQ35S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 59% | View |
| MAL214256222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 51% | View |
