CAP ALUM 2200UF 20% 25V RADIAL

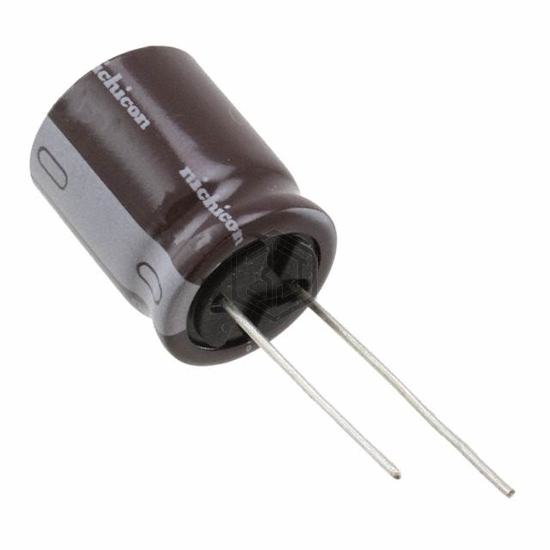

UPA1E222MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,826
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.981 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.33 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080478024 | Würth Elektronik | CAP ALUM 2200UF 20% 25V RADIAL | 84% | View |
| MAL224690226E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 83% | View |
| EJ1C222MP51025E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| EEU-FC1C222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 78% | View |
| 25WXA2200MEFC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 71% | View |
| EEU-HD1H222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 50V RADIAL | 64% | View |
