Vishay Beyschlag/Draloric/BC Components
CAP ALUM 560UF 20% 400V SNAP

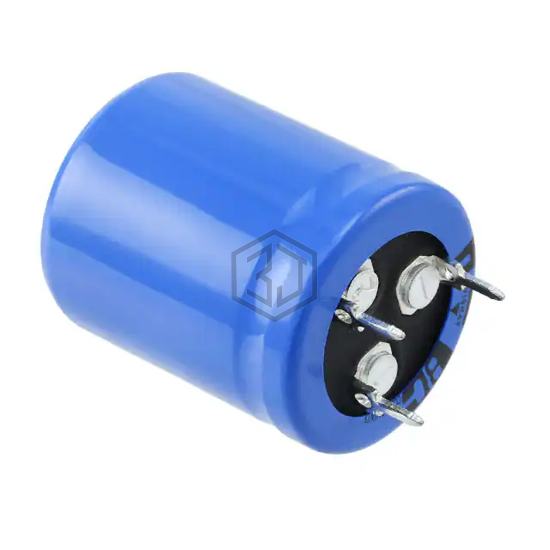

MAL215976561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 3,291
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 420mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.84 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 280 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VNN561MA45U | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 100% | View |
| PL2G561MND3045Y | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 97% | View |
| EKMS251VSN561MP45S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 80% | View |
| ELXM221VSN561MQ40S | United Chemi-Con | CAP ALUM 560UF 20% 220V SNAP | 73% | View |
| ELXM201VSN561MQ35S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 67% | View |
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 56% | View |
Submit your RFQ for MAL215976561E3 and get a quote within 24 hours.
