ALUMINUM ELECTROLYTIC CAPACITORS

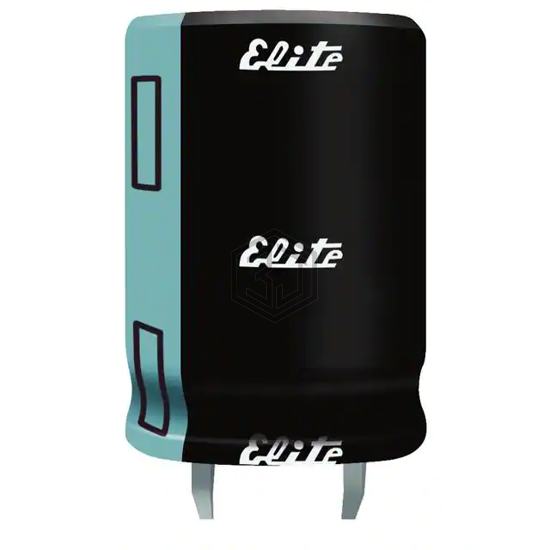

PL2G561MND3045Y is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.431 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VNN561MA45U | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 100% | View |
| MAL215976561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 97% | View |
| ELXM221VSN561MQ40S | United Chemi-Con | CAP ALUM 560UF 20% 220V SNAP | 80% | View |
| 50YXH560MEFCG412.5X25 | Rubycon | CAP ALUM 560UF 20% 50V RADIAL | 62% | View |
| ELXV101ELL561MM35S | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 61% | View |
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 56% | View |
Submit your RFQ for PL2G561MND3045Y and get a quote within 24 hours.
