Vishay Beyschlag/Draloric/BC Components

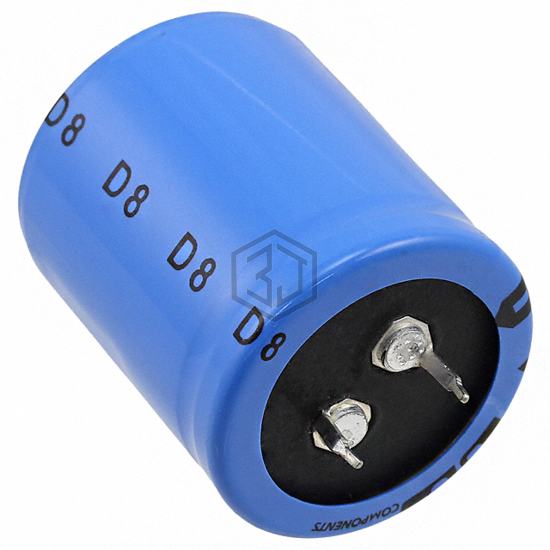

CAP ALUM 180UF 20% 500V SNAP
MAL215959181E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 180UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 7,642
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 480mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.13 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 350 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
MAL215959181E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS421VSN181MP40S | United Chemi-Con | CAP ALUM 180UF 20% 420V SNAP | 90% | View |
| PL2S181MND2535 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| KMQ450VS181M25X40T2 | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 87% | View |
| LGG2W181MELZ40 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 84% | View |
| B43508A5187M82 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 77% | View |
| 180KXF180MEFC20X20 | Rubycon | CAP ALUM 180UF 20% 180V SNAP | 60% | View |
