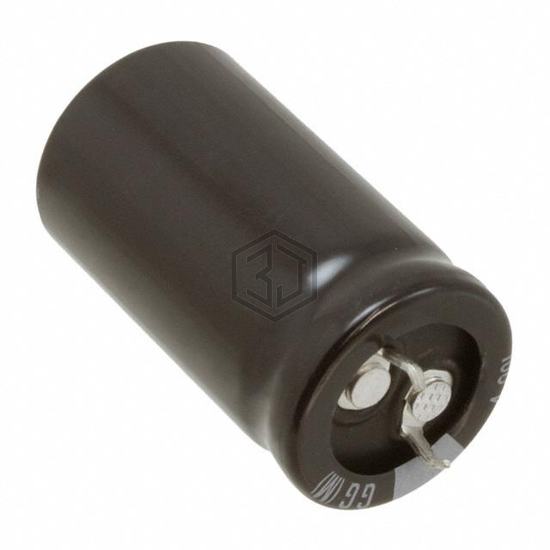

CAP ALUM 180UF 20% 450V SNAP
LGG2W181MELZ40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,572
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 790 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1297 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGNW6181MELB25 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 91% | View |
| LGNW6181MELA30 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 91% | View |
| PL2S181MND2535 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| 381LX181M350H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 86% | View |
| 180KXF180MEFC20X20 | Rubycon | CAP ALUM 180UF 20% 180V SNAP | 77% | View |
| 16YXF180MEFC6.3X11 | Rubycon | CAP ALUM 180UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for LGG2W181MELZ40 and get a quote within 24 hours.
