Vishay Beyschlag/Draloric/BC Components

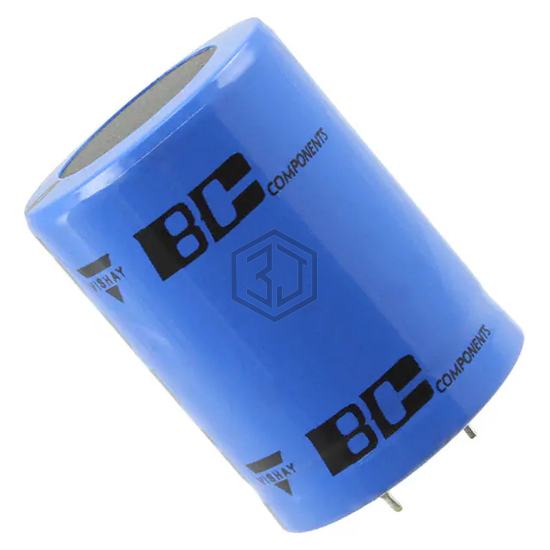

CAP ALUM 180UF 20% 500V SNAP
MAL215919181E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 180UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 3,458
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 740mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.666 A @ 10 kHz |
| Impedance | 550 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGW2W181MELA40 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 90% | View |
| LDQ2G181MERYGA | Nichicon | CAP ALUM 180UF 20% 400V RADIAL | 83% | View |
| B43508B5187M67 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 82% | View |
| 381LX181M400J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 400V SNAP | 81% | View |
| UPZ2G181MHD | Nichicon | CAP ALUM 180UF 20% 400V RADIAL | 80% | View |
| 381LQ181M350J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 76% | View |
