CAP ALUM 180UF 20% 450V SNAP

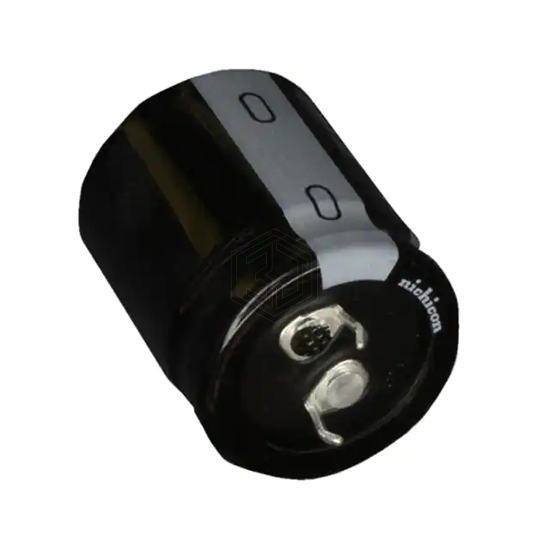

LGW2W181MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9305 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450HXH180MEPASN20X45 | Rubycon | CAP ALUM 180UF 20% 450V SNAP TH | 98% | View |
| MAL215919181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 90% | View |
| B43508B5187M67 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 89% | View |
| EKMQ401VSN181MP35S | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 80% | View |
| 381LQ181M350J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 72% | View |
| 250TXW180MEFR18X25 | Rubycon | CAP ALUM 180UF 20% 250V RADIAL | 61% | View |
