Vishay Beyschlag/Draloric/BC Components
CAP ALUM 10UF 20% 450V SMD

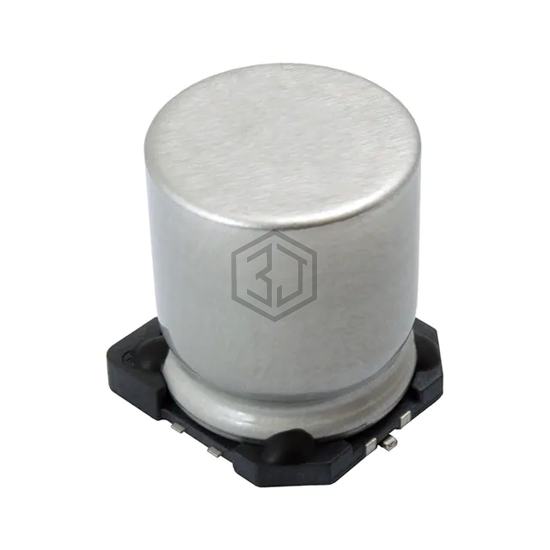

MAL215299704E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 10UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 2,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 90 mA @ 100 Hz |
| Ripple Current @ High Frequency | 225 mA @ 30 kHz |
| Impedance | 2.9 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.654" L x 0.654" W (16.60mm x 16.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219299604E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 400V SMD | 97% | View |
| EMVH451GDA100MMN0S | United Chemi-Con | CAP ALUM 10UF 20% 450V SMD | 85% | View |
| ULR2W100MNL1GS | Nichicon | CAP ALUM 10UF 20% 450V SMD | 77% | View |
| EEE-FN2A100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 64% | View |
| ATB106M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 57% | View |
| 35TRV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 51% | View |
Submit your RFQ for MAL215299704E3 and get a quote within 24 hours.
