Cornell Dubilier / Illinois Capacitor
CAP ALUM 10UF 20% 35V SMD

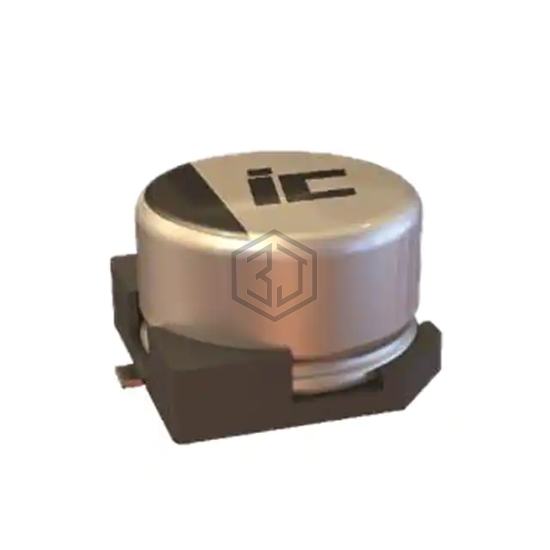

ATB106M035 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 15.92Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 112 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.228" W (5.30mm x 5.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MZA50VC10RMF61TP | United Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 85% | View |
| 106AVD050MER | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 82% | View |
| EEE-FKV100UAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 71% | View |
| AFK106M50C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 61% | View |
| 35TZV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 61% | View |
| UT106M025HDHTA | Aillen | CAP. ALUM 10UF 25V 20% SMD | 50% | View |
