Vishay Beyschlag/Draloric/BC Components

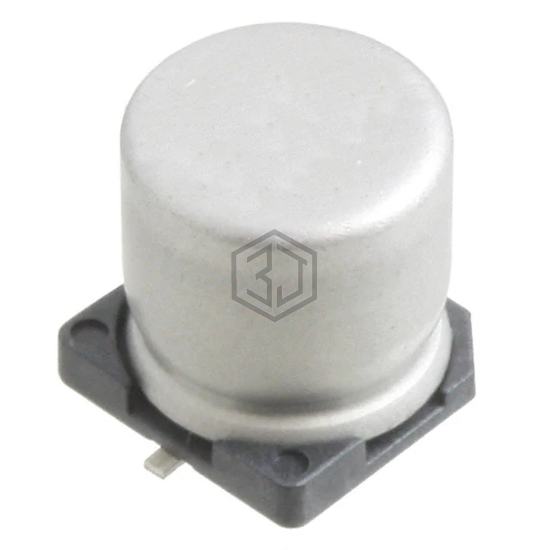

CAP ALUM 1000UF 20% 6.3V SMD
MAL215099301E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 3,720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2500 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV108M6R3S9MAA | KEMET | CAP ALUM 1000UF 20% 6.3V SMD | 94% | View |
| EEE-FT1A102GV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 73% | View |
| EEE-FK1A821SL | Panasonic Electronic Components | CAP ALUM 820UF 20% 10V SMD | 67% | View |
| EEE-FK1A821SP | Panasonic Electronic Components | CAP ALUM 820UF 20% 10V SMD | 67% | View |
| EEE-FP1A102AP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 62% | View |
| MAL216099503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 55% | View |
Submit your RFQ for MAL215099301E3 and get a quote within 24 hours.
