Vishay Beyschlag/Draloric/BC Components
CAP ALUM 1000UF 20% 16V SMD

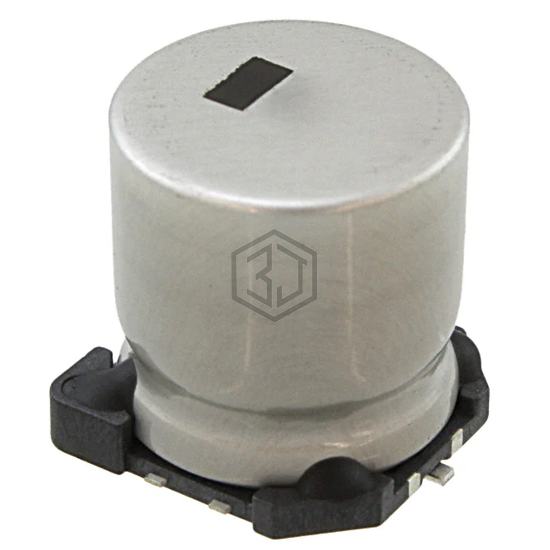

MAL216099503E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1500 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.654" L x 0.654" W (16.60mm x 16.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226099503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 100% | View |
| VUJ102M1CTR-1621S | Surge | CAP ALUM 16V POLAR | 100% | View |
| UBC1A102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 79% | View |
| VUJ102M1ATR-1313S | Surge | CAP ALUM 10V POLAR | 79% | View |
| MAL226099107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 69% | View |
| MAL216099004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V SMD | 59% | View |
