Vishay Beyschlag/Draloric/BC Components

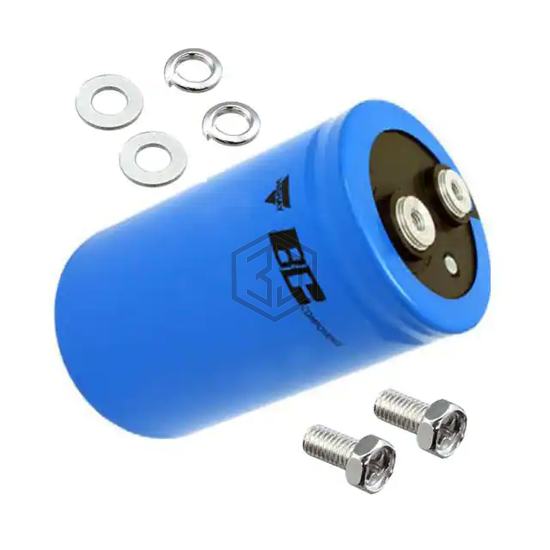

CAP ALUM 47000UF 40V SCREW
MAL210637473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47000UF 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,360
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24.5 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.402" (111.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D350HPC473MC67M | United Chemi-Con | CAP ALUM 47000UF 20% 35V SCREW | 79% | View |
| MAL210178473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 63V SCREW | 73% | View |
| E36D500HPN473MC79U | United Chemi-Con | CAP ALUM 47000UF 20% 50V SCREW | 62% | View |
| LNT1V473MSE | Nichicon | CAP ALUM 47000UF 20% 35V SCREW | 60% | View |
| 50LSQ47000MEFC51X98 | Rubycon | CAP ALUM 47000UF 20% 50V SCREW | 57% | View |
| LNT1J473MSEN | Nichicon | CAP ALUM 47000UF 20% 63V SCREW | 56% | View |
Submit your RFQ for MAL210637473E3 and get a quote within 24 hours.
